130 Series

THREADED INSERT, BLIND, REGULAR HEAD STYLE
LIGHT DUTY

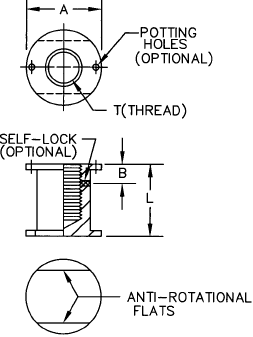

Data Sheet

TABLE I
CODE
NO.		 T
THREAD		 A
DIA
+.000 / -.010		 B
SELF-LOCK
± .06		 INSTALL
HOLE
+.005 / -.000
632 6-32 UNJC .577 .12 .578
832 8-32 UNJC .577 .12 .578
1032 10-32 UNJF .577 .12 .578
420 1/4-20 UNJC .685 .16 .686
428 1/4-28 UNJF .685 .16 .686
518 5/16-18 UNJC .685 .20 .686
524 5/16-24 UNJF .685 .20 .686
616 3/8-16 UNJC .811 .20 .812
624 3/8-24 UNJF .811 .20 .812



TABLE II
DASH
NO.		 L ± .03
LENGTH		 MINIMUM  FULL  THREAD  DEPTH
#6 #8 #10 1/4 5/16 3/8
-6 .375 .225 .225 .175 — — —
-7 .437 .276 .287 .237 — — —
-8 .500 .276 .328 .300 .225 — —
-10 .625 .276 .328 .375 .350 .350 .350
-12 .750 .276 .328 .375 .475 .475 .475
-14 .875 .276 .328 .375 .500 .600 .600
-16 1.000 .276 .328 .375 .500 .625 .725

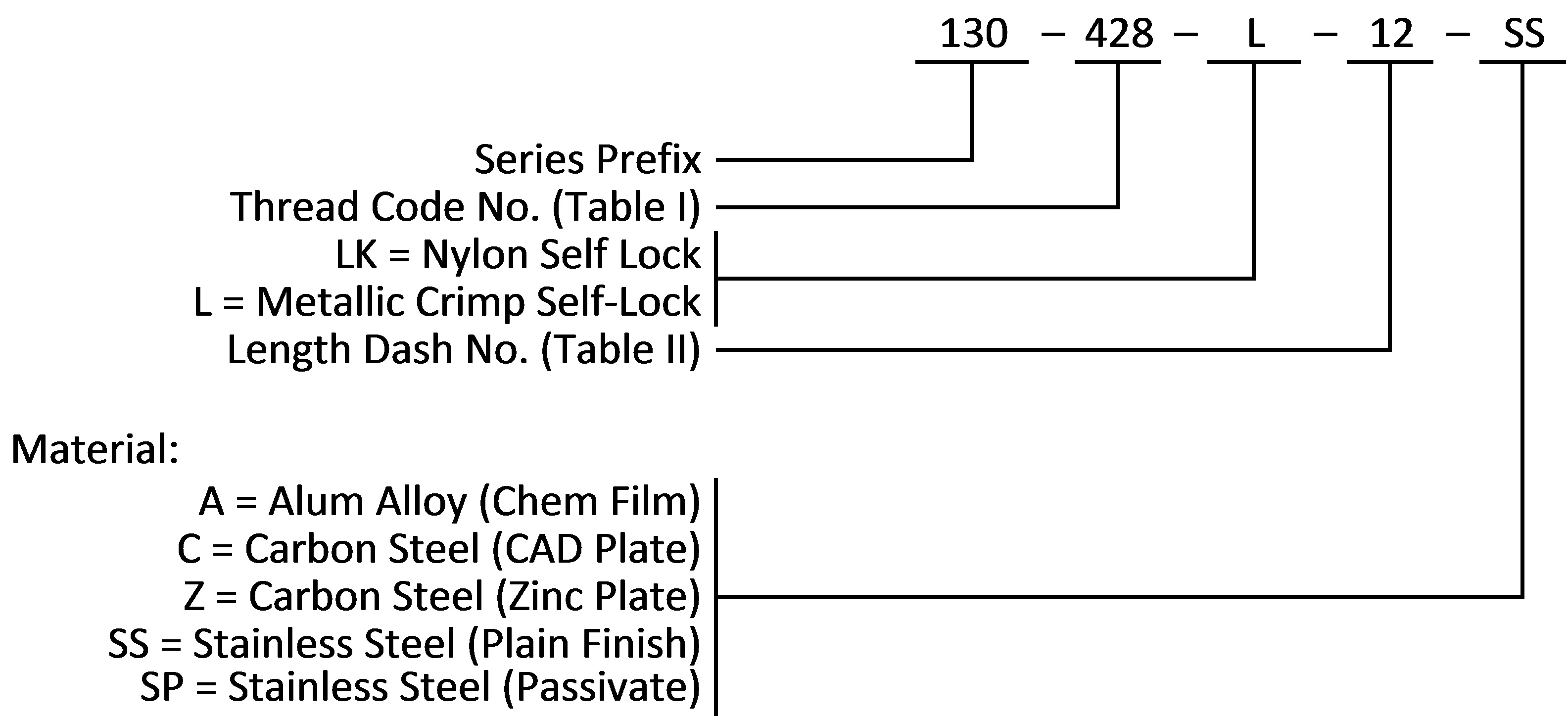

EXAMPLE: PART NUMBERING SYSTEM
